Using Token2 programmable hardware tokens with Facebook


 en français

Facebook is a social networking site that makes it easy for you to connect and share with family and friends online. Originally designed for college students, Facebook was created in 2004 by Mark Zuckerberg while he was enrolled at Harvard University. By 2006, anyone over the age of 13 with a valid email address could join Facebook. Today, Facebook is the world's largest social network, with more than 1 billion users worldwide.
Two-factor authentication is a security feature that helps protect your Facebook account in addition to your password.
Facebook allows using Token2 programmable tokens and Token2 security keys as methods for two-step verification.
The guide below will show you the steps for enabling 2FA using our programmable tokens (as a replacement for authenticator applications).

Requirements:

• A Facebook account
• Any of the Token2 TOTP programmable tokens
• An app for provisioning the programmable tokens (NFC burner or USB Config tool, depending on the model). The list of compatible apps is available here.

Step 1. Enable the 2FA method

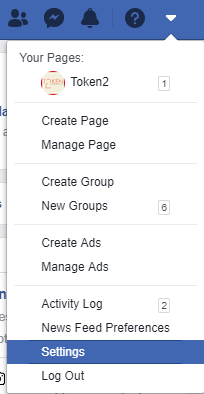

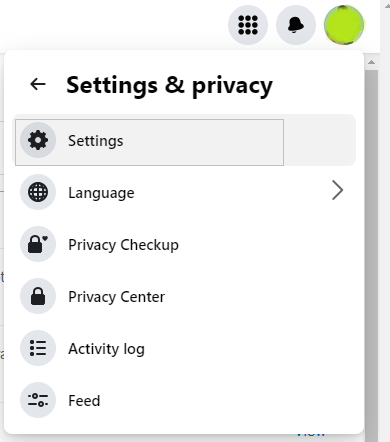

1) Log in to your Facebook account, click on your profile avatar,and select 'Settings and privacy'. Then click on 'Settings'.

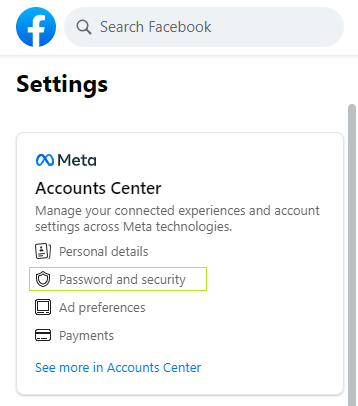

2) Go to "Password and security" on the "Accounts Center" panel.

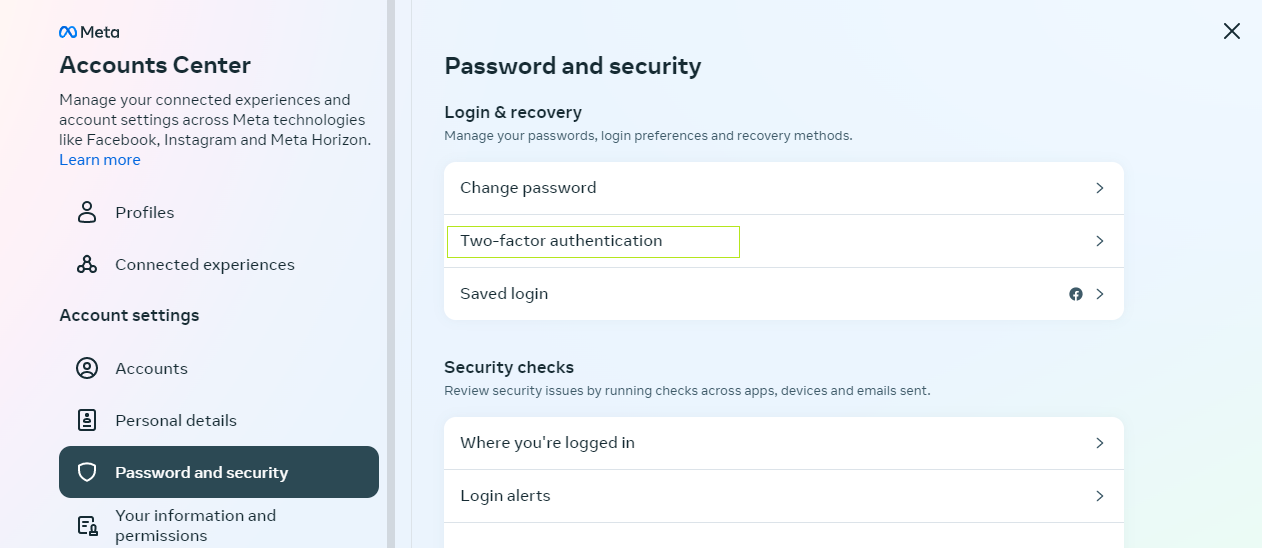

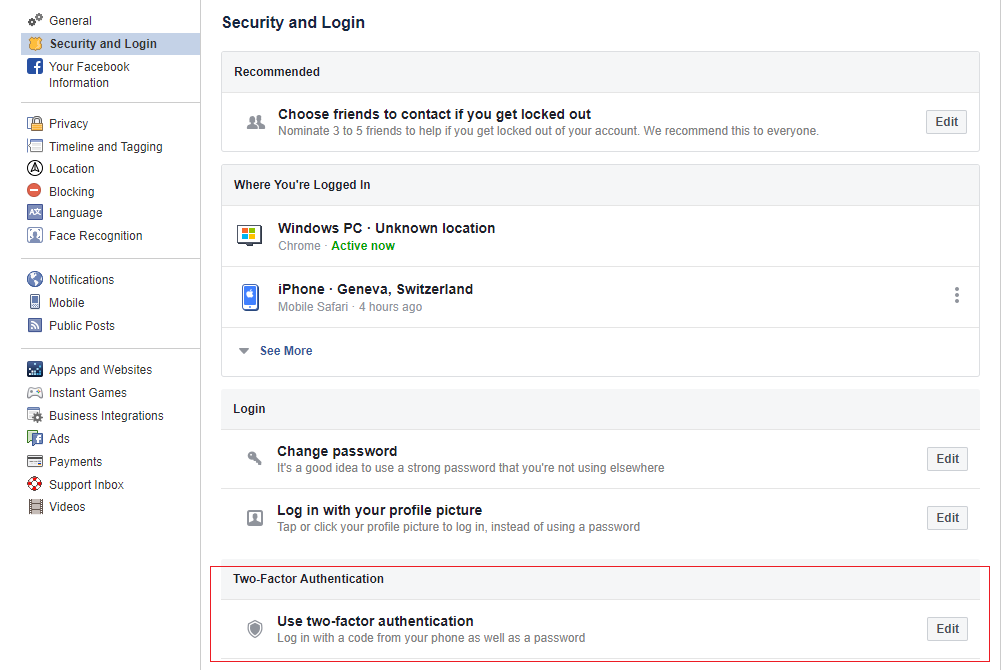

3) Navigate to "Password and security" and click on "Two-factor authentication".



4) Choose the account for activation with 2FA. Then enter the account's password to continue.

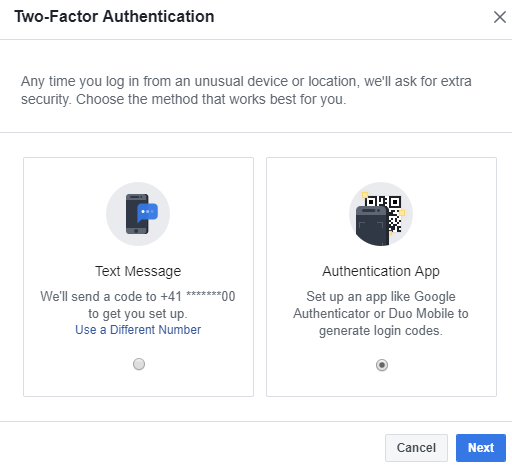

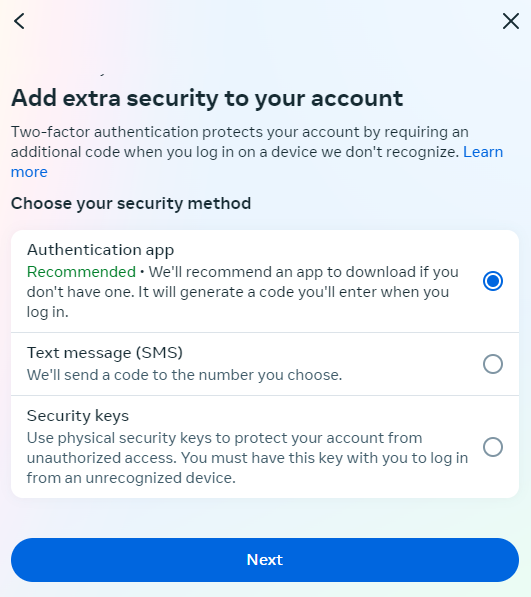

5) On the popup window with authentication methods, select the "Authentication app" option and click "Next".

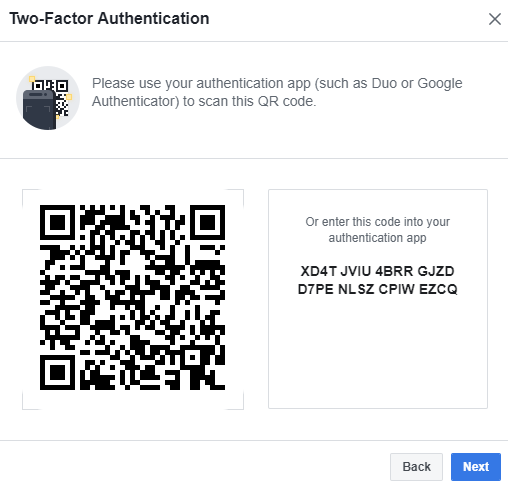

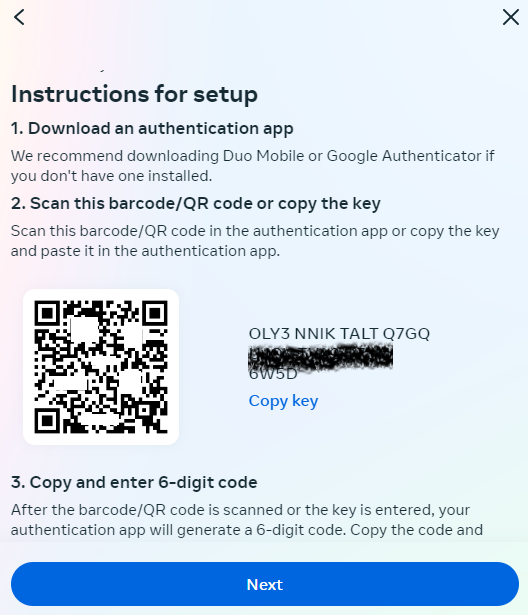

6) A QR code will be displayed in the browser that you will scan using one of the provisioning tools in the next step.



Step 2. Provision the token




  • Launch the NFC burner app on your Android device and hit the "QR" button



  • Point the camera to the QR code shown on the account page. Upon a successful QR scan, the camera window should disappear
  • Turn on the token and touch it with your phone (make sure it is overlapped by the NFC antenna) and click "Connect" on the app
  • Upon successful connection, click the "Burn seed" button (the button will become active only if NFC link is established).



  • A message box similar to the one below will be shown upon successful completion

Follow the steps below to perform setting the seed for your token using Windows App.

1. Launch the exe file, then select the NFC device from the drop-down list and click on "Connect". You should see a message box notifying about a successful operation.

Token2 NFC Burner app for Windows


2. Enter or paste the seed in base32 format, or use one of the QR scanning methods to populate this field

3. Place the token onto the NFC module and wait for its serial number to appear.

Token2 NFC Burner app for Windows

4. Click on "Burn seed" button. A log entry with the serial number and "Successful operation" text will be logged in the log window.

Token2 NFC Burner app for Windows


  • Launch the NFC burner app on your iPhone device and hit the "scan QR" button



  • Point the camera to the QR code shown on the account page. Upon a successful QR scan, the camera window should disappear and the seed field will be populated with the hex value of the seed. Touch the Burn button to continue.
  • When an NFC prompt similar to the one below is shown, turn on the token and touch the top of your iPhone with the token.


  • A message box similar to the one below will be shown upon successful completion
Please note that the procedures above are shown only as examples and are valid to single profile TOTP tokens only. The procedure for multi-profile and USB-programmable devices are similar but slightly different

Step 3. Verify the OTP

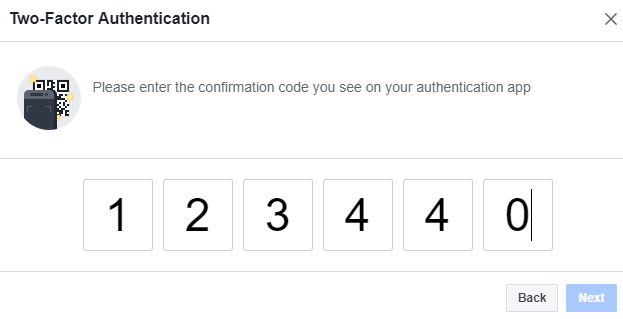

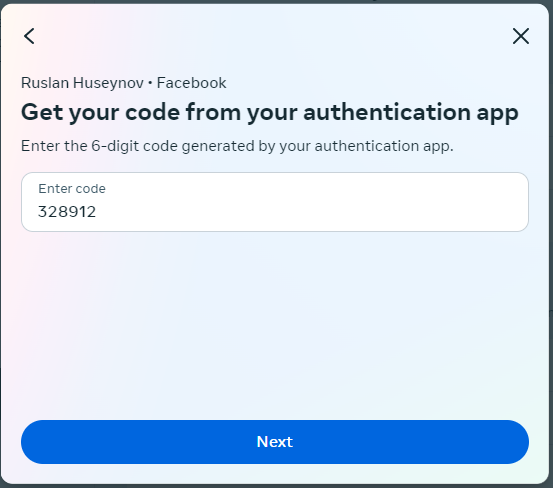

After the token provisioning is done, turn the token off and back on. Enter the OTP provided by the hardware token and click 'Next'.

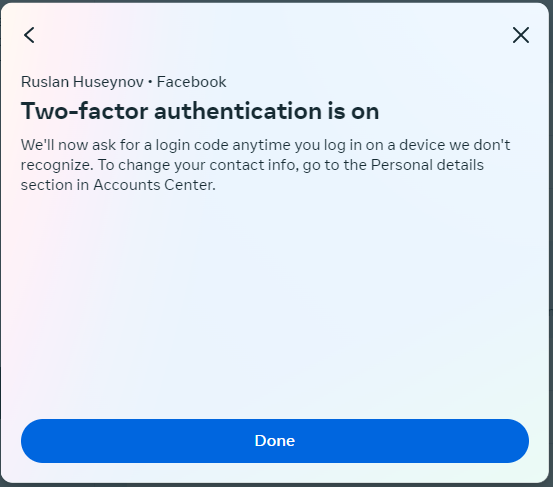

Then click "Done" to complete the enrollment process.



Now you have successfully enabled Token2 programmable token to protect your account. You will be prompted to enter the OTP each time you log in to your Facebook account.
